Beyond Rendering: Rasterization, Topology, and the Bridge to Search

• The Topological Trap: When Shapes Lose Their Holes
• Separation of Concerns: Geometry vs. Pixel Space
• Engineering Trade-offs in the Domain Shift
• Rasterization as a Bridge to Search
• Lessons Learned

When we hear “rasterization,” we usually picture computer graphics—the final step in a pipeline that paints triangles onto a screen for human eyes. But in modern systems, particularly in domains like CAD/EDA, GIS, and image-based search pipelines, rasterization serves a fundamentally different purpose.

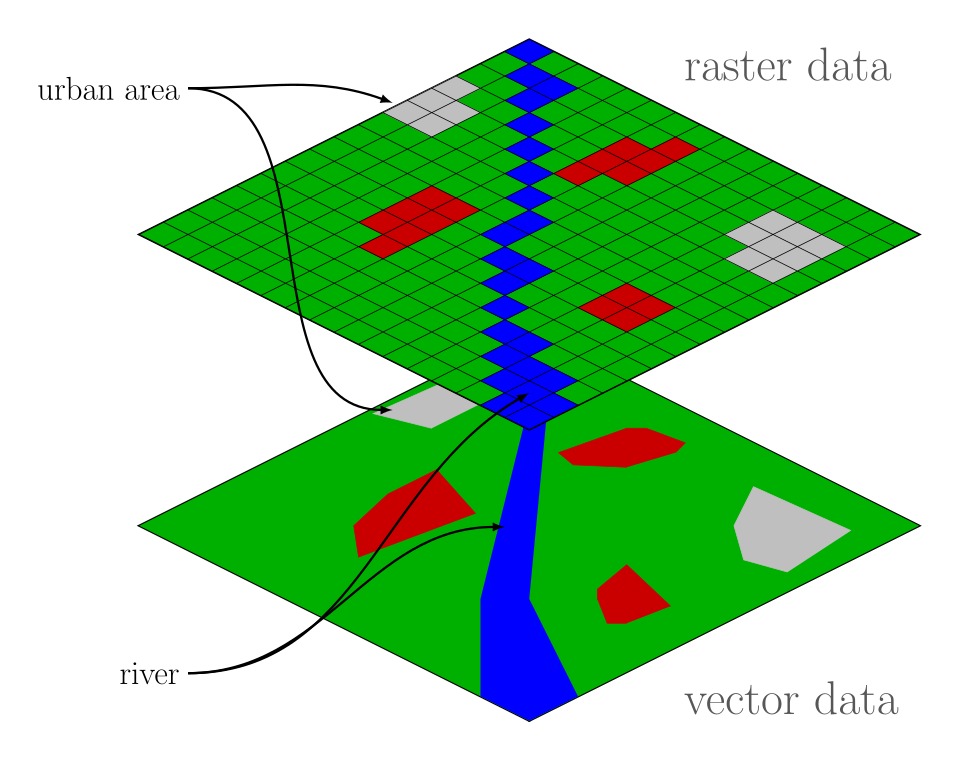

In these contexts, rasterization is not just rendering; it is a critical data transformation. It bridges the continuous, structurally rich world of vector geometry and the discrete, uniformly gridded space required by spatial search algorithms.

However, translating structured layout data into a pixel grid is fraught with subtle traps. If we treat this transformation as a naive drawing exercise, we risk destroying the very structural information our downstream systems rely on.

The Topological Trap: When Shapes Lose Their Holes

Consider a simple geometric structure: a rectangular frame. In vector space, this can be represented as four overlapping rectangles forming a boundary, leaving an empty region in the center.

If we approach this purely as a drawing task, a naive pipeline might merge the shapes, extract the outer bounding hull, and fill it as a solid polygon. The result? A completely filled solid rectangle. The inner empty region—the “hole”—disappears entirely.

  1. Vector Geometry        2. Naive Rasterization     3. Topology-Aware
  (4 Overlapping Rects)     (The Trap: Hole Lost)      (Hole Preserved)

      +-------+                 +-------+                 +-------+
      | +---+ |                 |///////|                 |///////|
      | |   | |       --->      |///////|       vs.       |/     /|
      | +---+ |                 |///////|                 |///////|
      +-------+                 +-------+                 +-------+

This leads to catastrophic results for any downstream task relying on geometric accuracy. The core issue is that a complex polygon is defined not just by its outer hull, but by its topological invariants. Ignoring topology leads to incorrect rasterization.

Separation of Concerns: Geometry vs. Pixel Space

To solve this robustly, we must stop trying to resolve geometric relationships in pixel space. A reliable pipeline strictly separates the problem into two distinct stages:

1. Geometry Processing (Continuous Space)

Before a single pixel is generated, we construct polygons with explicit, mathematically rigorous topology. Using robust geometry engines (like KLayout), we perform Boolean operations to merge overlapping shapes and explicitly define both the outer boundaries and the inner holes.

2. Raster Generation (Discrete Space)

Once the topological truth is established, rasterization becomes a purely mechanical operation. We extract the predefined contours and fill them using standard discrete math operations.

     [ Continuous Vector Space ]             [ Discrete Pixel Space ]

Raw Shapes  --->  Boolean Operations  --->  Extract Contours  --->  Fill Grid
(Overlaps)        (Explicit Topology)       (Boundaries/Holes)      (Pixels)

There is a common misconception that inner and outer contours must be computed on the fly using complex scanline or sweep-line algorithms during the rasterization phase. In a well-architected system, contours are a property of the geometry representation itself, completely abstracted away from the rendering engine.

By separating these concerns, the geometry stage guarantees mathematical correctness, while the raster stage ensures computational efficiency.

Engineering Trade-offs in the Domain Shift

Transitioning from continuous coordinates to discrete pixels introduces inevitable artifacts. Engineers building these pipelines must manage a few core trade-offs:

• Quantization & Aliasing: Mapping floating-point coordinates to integer pixel grids inherently causes boundary shifts. Depending on the resolution, fine topological details can be merged or lost entirely. These effects must be anticipated and mitigated based on the precision requirements of the system.

• Scanline vs. Topological Fill: While classic row-by-row scanline rasterization is mathematically precise, it is highly complex to implement safely for edge cases (e.g., self-intersecting polygons). The “Geometry → Topology → Raster” approach is overwhelmingly preferred because it handles complex overlaps cleanly and yields a reusable geometry representation.

Rasterization as a Bridge to Search

Ultimately, in these systems, rasterization is rarely the final goal. Instead, it acts as the enabling layer for downstream processing.

Transforming geometric data into a discrete pixel representation makes it suitable for heavy-duty search algorithms. By moving into image space, we unlock the ability to run template matching, pattern search, and convolution-based feature extraction at scale. The rasterized grid becomes the common denominator for comparing disparate geometric structures.

Lessons Learned

• Topology is ground truth: A polygon is far more than its outer boundary. Preserving internal structures is non-negotiable for accurate downstream processing.

• Respect the domain: Solve geometric intersections in continuous vector space; solve dense search operations in discrete pixel space. Do not mix the two.

• Abstraction over algorithm complexity: A robust system isn’t defined by having the most complex scanline algorithm. It is defined by cleanly separating the “truth-gathering” (geometry) from the “formatting” (rasterization).

Good engineering is often about solving the right problem at the right level of abstraction. A well-designed system is not defined by the sheer complexity of its algorithms, but by how clearly it separates its concerns.
